(perhaps we shoud consider calling it "Step-up Authentication Service Attribute Authority" or "Authentication Assurance Service Attribute Authority"...)

Introduction

In the context of SAML-based national identity federations there has been an increasing need for learning more about a user's Level of Assurance (LoA) when it comes to identity vetting and authentication security. A few national identity federations have started to introduce services that increase the LoA of a user. All such services known today work using a proxy architecture. There is a component (the proxy) inserted between the user's Identity Provider (IdP) and the Service Provider (SP) which requires LoA information. The proxy then intercepts the user's SAML assertion and forces the user to use a second authentication factor before he can proceed to the actual service that needs LoA information. In case of the SURFconext Strong Authentication service, not only the authentication security is increased but also the identity vetting strength, as it requires the user initially to go through an identity vetting process with in-personam passport validation.

While this proxy model has some advantages (scalable, easy deployment from SP perspective, no SP discovery needed), it also has some weaknesses that it share with all proxy models (IdP must trust proxy, conflict with data minimization). The following specification of an Authentication Assurance Service Attribute Authority is an alternative approach making use of SAML Attribute Authority, which shares some of the advantages of the proxy model but has a fewer weaknesses.

Architecture

High level architecture

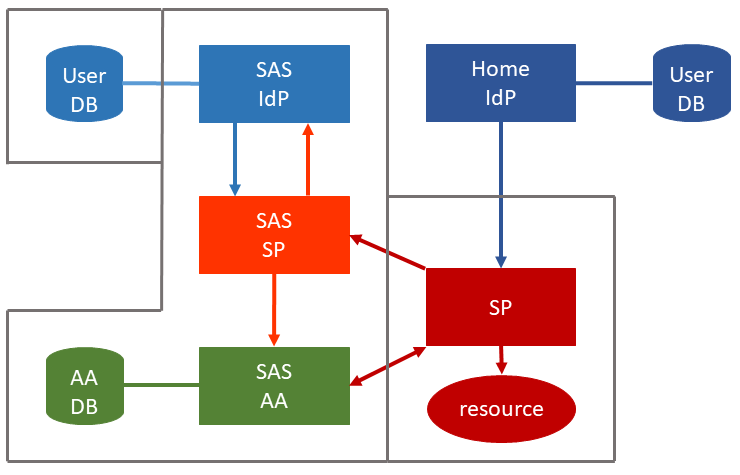

Authentication Assurance AA Architecture

(SAS = Step-up Authentication Service)

The Authentication Assurance AA model consists of a

... that could be operated by a trusted third party (e.g. federation) or a research project or community. A research SP only has to make a few configuration changes.

Registration Flow

Out of scope.

Login Flow

A normal login to a service requiring increased LoA would work like this:

  1. User accesses SP with his/her web browser and clicks on login
  2. User's web browser is sent to discovery service where users chooses his/her IdP
  3. User's web browser is sent to login page of his IdP where (s)he authenticates
  4. After successful authentication, the user's web browser is redirected with a SAML assertion back to the SP
  5. The SP validates the assertion and extracts the user's attributes (at least a unique identifier that is needed for the Attribute Query).
  6. If all requested attributes have been released and the AuthnContextClassRef (or the eduPersonAssurance attribute) contains the value 'https://refeds.org/profile/mfa' we're done and the following steps are skipped. (NB: This is only an example. Which access rules are implemented is up to the community or project making use of this approach!)
    Otherwise:
  7. Using the identifier attribute, the SP then performs a SAML attribute query to the Attribute Authority (AA) of the Step-up Authentication Service (SAS)
  8. If available, the AA returns the LoA attribute (login at SAS IdP) for this user to the SP
  9. Using the Shibboleth Attribute Checker, the SP checks the LoA-related attribute (that was queried from the AA). If that LoA attribute is not present or if it does not have the required value, the user is sent to a web page X of the SAS.
  10. Web page X is protected by an SP (SAS SP) itself, therefore the user has to authenticate again, this time using the SAS IdP - as a substitute for a second factor of the Home IdP.
  11. If authentication at SAS IdP succeeded, a temporary LoA entry is created in database of AA and the user is sent back to SP
  12. SP initiates login of user again, so (s)he is sent back to his/her IdP (where SSO session is still active) and from there back to the SP, which again initiates a SAML attribute query.
  13. If the attribute query happened in a reasonably short time interval since the user authenticated at SAS IdP, the AA has released a LoA attribute for the user. Therefore, the AttributeChecker's requirements are met and the user is granted access.

In the above flow it is assumed that the registration of the user with the user directory of the SAS IdP and any identity vetting mechanics have taken place prior to this login flow. The related processes may be subject to local / project / community requirements and are not in the scope of this POC implementation.

Flowchart: loa-aa-flow_v0.2.pdf

Weaknesses/Limitations

Strengths:

Open Questions

References
