In order to publish the report on to prod-msr.geant.net please carry out the following:
Step One: Export to local machine from test-msr
- SSH to test-msr.geant.net and cd to "/var/lib/tomcat6/webapps/msr/media/", then copy the topology directory from the /var/lib/tomcat6/webapps/msr/media/ directory to your home directory on test-msr: sudo cp -r topology/ /home/local/GEANT/omar.qouqas. Then use WinSCP to copy that directory to your laptop.
** Please note the year and month format of the file name e.g. BACKBONE_201707.png
NOTE: If either of the topology diagrams (BACKBONE_YYYYMM.png, GLOBAL_YYYYMM.jpg) are not present, copy the previous period's and rename to the current period.
2. SSH to test-msr.geant.net and cd to "/var/lib/tomcat6/webapps/msr/media/", then copy the graphs directory from the /var/lib/tomcat6/webapps/msr/media/ directory to your home directory on test-msr: sudo cp -r graphs/ /home/local/GEANT/omar.qouqas. Then use WinSCP to copy that directory to your laptop.
** Please note the year and month format of the file name e.g. NREN_201707.png

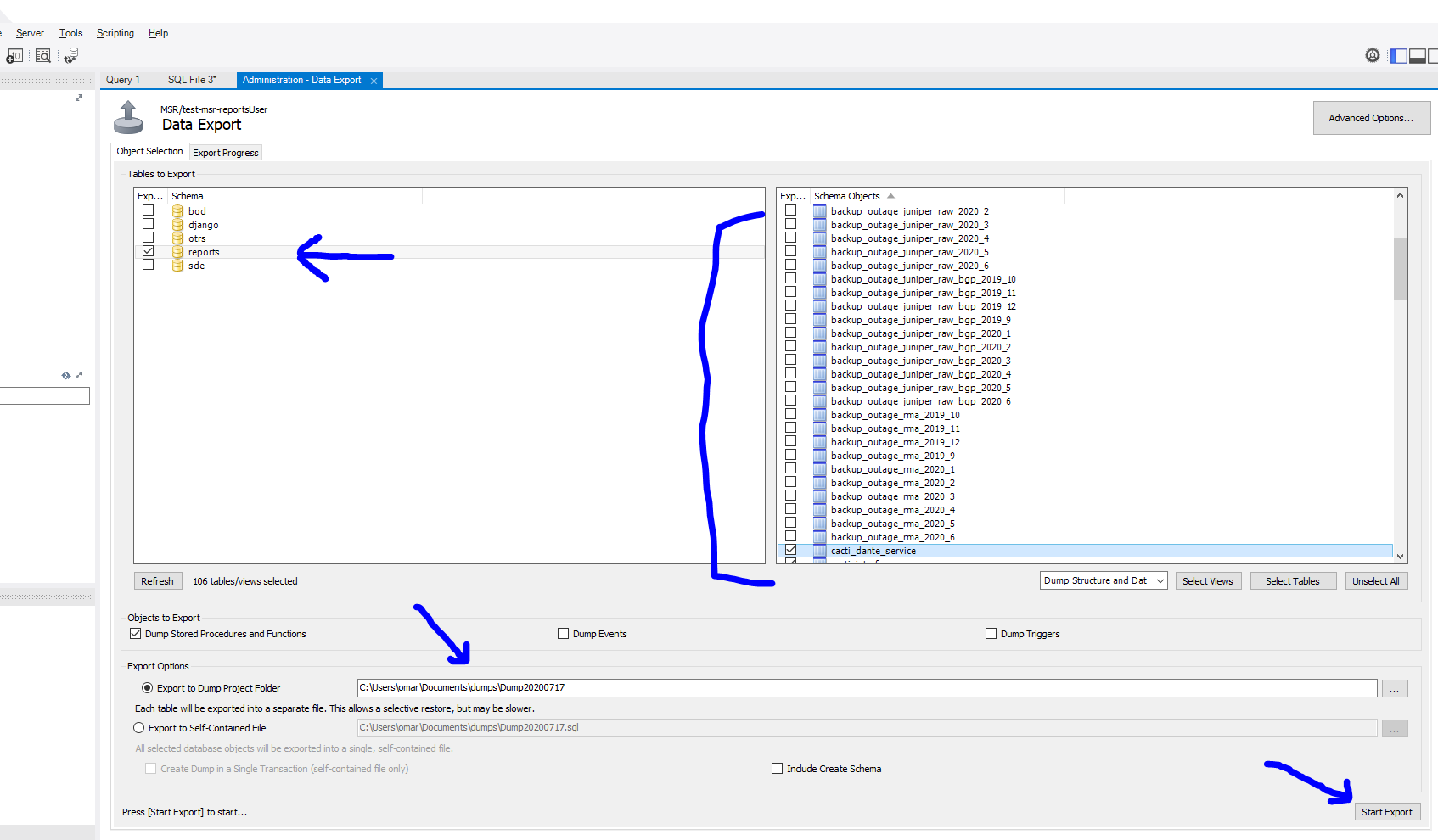

3. Use MySQL Workbench to export the reports database tables: From the Menu bar go to "Server" then "Data Export", choose "reports" database (excluding views and tables starting with the word backup_outage ): see below:
Step Two: Import to prod-msr from local machine
1- Use WinSCP to copy the topology directory from your laptop to your home directory on prod-msr then SSH to prod-msr and copy that directory to /var/lib/tomcat6/webapps/msr/media/ on prod-msr.geant.net. (sudo cp -r topology/ /var/lib/tomcat6/webapps/msr/media/)
2- Use WinSCP to copy the graphs directory from your laptop to your home directory on prod-msr then SSH to prod-msr and copy that directory to /var/lib/tomcat6/webapps/msr/media/ on prod-msr.geant.net. (sudo cp -r graphs/ /var/lib/tomcat6/webapps/msr/media/)

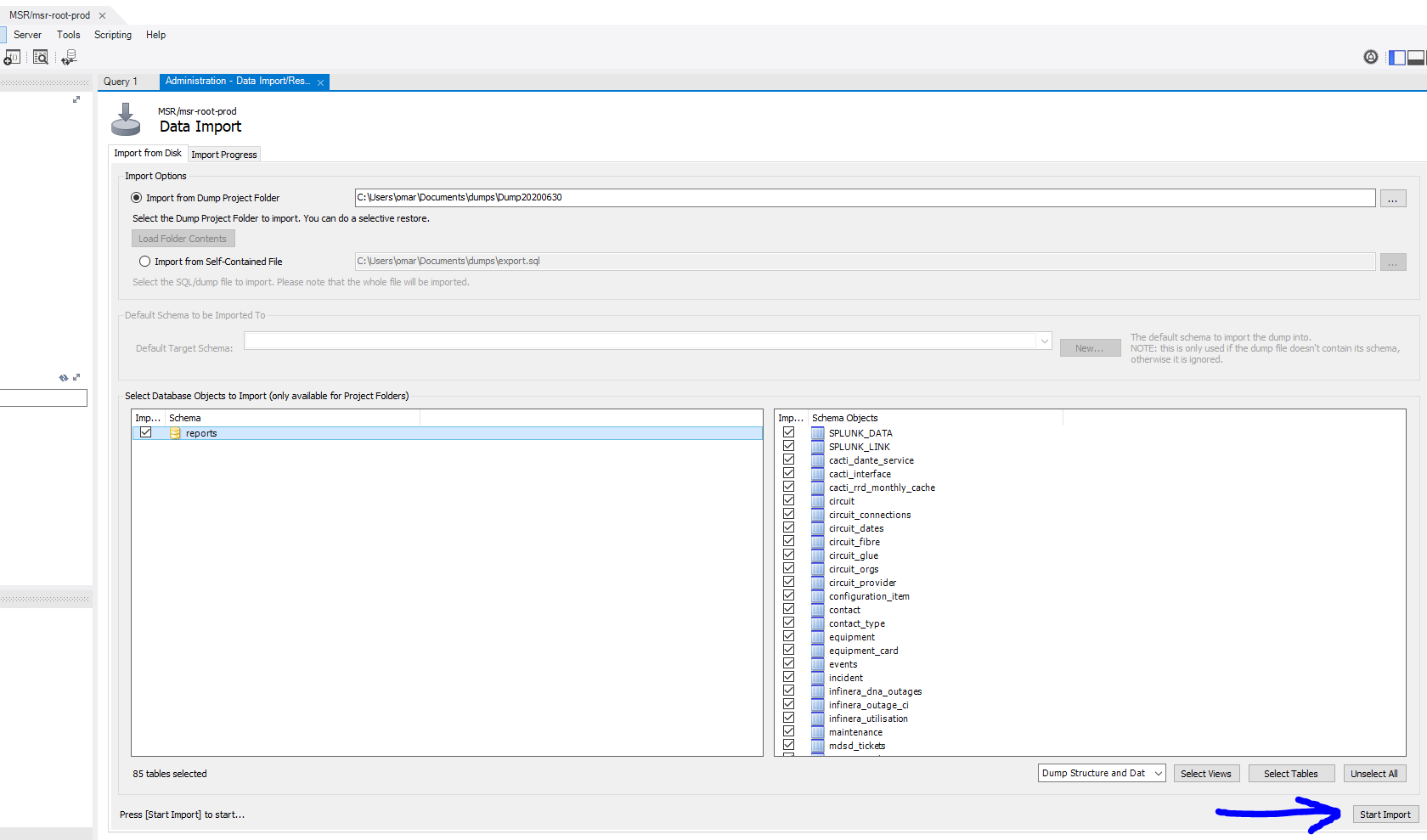

3- Use MySQL Workbench to import the reports database tables from your laptop onto prod-msr.geant.net. From the Menu bar go to "Server" then "Data Import", locate the database dump on your machine and then click "start import" see below:
4- Lastly, you need to edit the /var/lib/tomcat6/webapps/msr/includes/mainmenu.jsp on prod-msr.geant.net to include the new report in the Previous Reports section of the menu
**Make sure to make the changes in local repository ("Eclipse") and push the changes to Master branch
i.e. "<li><a id="menu.Jun.lmi" href="set_report_period.jsp?shift=0&year=2018&month=6&menu=left" target="_top">June</a></li>"
The final report can be reviewed from these URLs: http://prod-msr.geant.net:8888/msr/ and https://tools.geant.net/portal/links/msr/
** WARNING - Sometimes the MSR, when viewed from the tools portal does not display the É character of GÉANT properly. To overcome this, you may have to change the data in the database to be GÉANT instead.
