This is a new article for the blog serie called "RARE Day One". Today we will explore one of freeRouter killer feature that will make your life easier during your day to day operation: freeRouter assisted diagnosis command.

Requirement

  • Basic Linux/Unix knowledge
  • Service provider networking knowledge

Overview

As previously mentioned in the precendent precedent article, when you log into a network equipment such as a router, you tend to have some automatic reflex. You usually:

  • Check router configuration: show run or sh conf
  • Check ipv4 / ipv6 / or LFIB forwarding table
  • So you basically issue diagnosis, troubleshooting command
  • An then you want to configure the router

Article objective

In this article, we will focus on the 3rd bullet point and will present you freeRouter available diagnosis command. There They are grouped into 4 5 categories: show / watch / display / differ.

  • show
  • view
  • watch
  • display
  • differ

Basically these commands are accessed through freeRouter user mode. If you need to use them from config mode, please use the "do" keyworkdkeyword.

[ #002 ] - "show/view/watch/display/differ"

Expand
titleshow

You would mostly be familiar with the "show" command. It is very good and can basically be used to get output from control plane object. Most of the time this can be used against static object like config.

Let's assume that I would like to get BGP config from my home router:

Code Block
languagebash
themeMidnight
titleshow BGP configuration from running config
show running-config bgp4
router bgp4 42
 vrf dn42
 local-as 4242421975
 router-id 172.22.105.65
 address-family unicast multicast other flowspec vpnuni vpnmlt vpnflw ovpnuni ovpnmlt ovpnflw vpls mspw evpn mdt srte mvpn omvpn
 neighbor 172.23.215.177 remote-as 4242421955
 neighbor 172.23.215.177 description NOP.DN42
 neighbor 172.23.215.177 local-as 4242421975
 neighbor 172.23.215.177 address-family unicast multicast other flowspec vpnuni vpnmlt vpnflw ovpnuni ovpnmlt ovpnflw vpls mspw evpn mdt srte mvpn omvpn
 neighbor 172.23.215.177 distance 20
 justadvert loopback42
 exit

But I can also check the status of BGP peering into VRF dn42

Code Block
languagebash
themeMidnight
titleCheck BGP IPv4 peers status in VRF dn42
show ipv4 bgp 42 summary
as          learn  done  ready  neighbor        uptime
4242421955  517    518   true   172.23.215.177  00:38:18

Check the same BGP peering but now for IPv6

Code Block
languagebash
themeMidnight
titleCheck BGP IPv6 peers status in VRF dn42
r1#show ipv6 bgp 42 summary
as          learn  done  ready  neighbor             uptime
4242421955  351    352   true   fd40:cc1e:c0de::151  00:40:40
show ipv4 bgp 42 summary
as          learn  done  ready  neighbor        uptime
4242421955  517    518   true   172.23.215.177  00:38:18

Let's see some BGP prefix received in VRF dn42 bgp table:

so my screen is too small for all the IPv6 BGP prefix into DN42 VRF

As a last example, something we usually do as network operators is to check ongoing interface traffic level:

Code Block
languagebash
themeMidnight
titleCheck interface traffic level (received/transmitted) )
r1#sh int sdn1
sdn1 is up (since 09:41:21, 2 changes)
 description: mjolnir@LAN1[01:00.0]
 type is sdn, hwaddr=003b.7671.764f, mtu=1500, bw=8000kbps, vrf=inet
 ip4 address=192.168.0.90/24, netmask=255.255.255.0, ifcid=10013
 ip6 address=2a01:e0a:159:2850::666/64, netmask=ffff:ffff:ffff:ffff::, ifcid=10013
 received 52013 packets (17638316 bytes) dropped 5 packets (448 bytes)
 transmitted 80765 packets (15101696 bytes) promisc=false macsec=false

r1#sh int sdn1
sdn1 is up (since 09:41:22, 2 changes)
 description: mjolnir@LAN1[01:00.0]
 type is sdn, hwaddr=003b.7671.764f, mtu=1500, bw=8000kbps, vrf=inet
 ip4 address=192.168.0.90/24, netmask=255.255.255.0, ifcid=10013
 ip6 address=2a01:e0a:159:2850::666/64, netmask=ffff:ffff:ffff:ffff::, ifcid=10013
 received 52013 packets (17638316 bytes) dropped 5 packets (448 bytes)
 transmitted 80766 packets (15101778 bytes) promisc=false macsec=false

r1#sh int sdn1
sdn1 is up (since 09:41:24, 2 changes)
 description: mjolnir@LAN1[01:00.0]
 type is sdn, hwaddr=003b.7671.764f, mtu=1500, bw=8000kbps, vrf=inet
 ip4 address=192.168.0.90/24, netmask=255.255.255.0, ifcid=10013
 ip6 address=2a01:e0a:159:2850::666/64, netmask=ffff:ffff:ffff:ffff::, ifcid=10013
 received 52015 packets (17638418 bytes) dropped 5 packets (448 bytes)
 transmitted 80766 packets (15101778 bytes) promisc=false macsec=false


In the last example we repeatedly issue the "sh int sdn1" command and try to see if TX/RX packets counters increment or not.

This command can be improved in order to be less chatty:

Code Block
languagebash
themeMidnight
titleCheck interface traffic level (received/transmitted) )
r1#sh int sdn1 | i received|transmitted
 received 52256 packets (17681204 bytes) dropped 5 packets (448 bytes)
 transmitted 81130 packets (15162642 bytes) promisc=false macsec=false

r1#sh int sdn1 | i received|transmitted
 received 52256 packets (17681204 bytes) dropped 5 packets (448 bytes)
 transmitted 81130 packets (15162642 bytes) promisc=false macsec=false

r1#sh int sdn1 | i received|transmitted
 received 52260 packets (17681496 bytes) dropped 5 packets (448 bytes)
 transmitted 81132 packets (15162790 bytes) promisc=false macsec=false

Same goes if want want interface traffic for all interface

Code Block
languagebash
themeMidnight
titleCheck interface traffic level (received/transmitted) )
show interfaces summary
interface   state  tx        rx        drop
loopback0   up     65856     0         0
loopback42  up     65856     0         0
ethernet0   up     31071917  33183183  0
hairpin41   up     85806     85552     0
hairpin42   up     85806     85552     0
sdn1        up     15200591  17703953  448
sdn2        up     15563546  8000994   794
sdn3        admin  0         0         0
sdn4        admin  0         0         0
sdn5        admin  0         0         0
sdn6        admin  0         0         0
sdn998      up     5850      0         0
sdn999      up     23268     18666     0
tunnel1965  up     5222281   7124950   0

Above was to check interface status related to software switched packet. What if I want to check hardware switched packet counters switched by P4 or DPDK ?

Code Block
languagebash
themeMidnight
titleCheck interface traffic level (received/transmitted) )
show interfaces hwsummary
interface   state  tx         rx         drop
hairpin41   up     0          0          0
hairpin42   up     0          0          0
sdn1        up     317902736  590402538  1162971
sdn2        up     574923844  310497399  203
sdn3        admin  0          0          0
sdn4        admin  0          0          0
sdn5        admin  0          0          0
sdn6        admin  0          0          0
sdn998      up     9062       0          0
sdn999      up     103804     64470      0
tunnel1965  up     0          1301312    0


Tip
titleNote

As a network operator, the "show" command is your best friend, your wingman. Just explore now from freeRouter CLI using "show ?" and you'll understand the amazing list of diagnosis command available.


...

Expand
titlediffer

Last but not list. "differ" , this will split the window in 2 buffers reflecting the same output but with different version and it it signal line lines that have changed.

Code Block
languagebash
themeMidnight
titleCheck BGP best path computation for BGP process 42
r1#diff ipv4 bgp 42 bestpath
...

With this view you can easily spot the differences between 2 advertisements interval.

To be honest, when i used this feature for the first time I was totally stumbled and said: Waouw ...

Simply amazing ...

Discussion

show/view/watch/display/differ is pretty unique to freeRouter, and is really meant to provide you the best user experience as a network operator ! these These command have proven to be helpful, especially if you deal with huge feed. However, be carefull careful when you are working with very big output such BGP full feed. This won't crash the router of course as we used to when we issued "debug ip packet" but it will for sure imply refresh a high CPU usage due to regular refresh at the control plne plane level.

Conclusion

In this 2nd article:

  • We presented freeRouter show/watch/display/differ diagnisis command
  • These are very useful when you have to deal with huge command output buffer.
Tip
titleFinal words

As said, these are diagnosis commands are specific to freeRouter. 2 decades of know how and network experience have been pushed into these feature codes. These have been developed for one purpose:

"Provide a unique operation experience to network engineers"

Feel free to try and use them according to your environment taste!

Last but not least, you can play with these different mode from this sandbox:

Code Block
languagebash
themeMidnight
titletype "ssh dl.nop.hu" in a terminal (any user/pass will do) and choose "1l"
ssh dl.nop.hu -l random_user                                                                                                                                   255 ↵
Warning: Permanently added 'dl.nop.hu,193.224.23.5' (RSA) to the list of known hosts.
random_user@dl.nop.hu's password:
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXX XXXXX XXX    XXX     XXX XX XX XXXX XXXXXXXXXXXXXXXXXXX
XXXX  XXXX XX XXXX XX XXXX XX XX XX XXXX XXXXX/~~~~~~\XXXXXX
XXXX X XXX XX XXXX XX XXXX XX XX XX XXXX XXXX| player |XXXXX
XXXX XX XX XX XXXX XX     XXX    XX XXXX XXXXX\______/XXXXXX
XXXX XXX X XX XXXX XX XXXXXXX XX XX XXXX XXXXXXXXXXXXXXXXXXX
XXXX XXXX  XX XXXX XX XXXXXXX XX XX XXXX XXXXXXXXXXXXXXXXXXX
XXXX XXXXX XXX    XXX XXX XXX XX XXX    XXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
welcome
line ready
menu lab:
# - reboot router1
$ - reboot router2
% - reboot router3
1 - connect to router1
2 - connect to router2
3 - connect to router3
^ - rebuild routers
l - connect to lg.nop.dn42
x - exit
choose:l - telnet 172.23.199.110 23 /telnet
 - connecting to 172.23.199.110 23
 - securing connection

hi there!
try the following:
  show ipv4 route dn42
  show ipv6 route dn42
  show ipv4 bgp 65535 vpnuni summary
  show ipv6 bgp 65535 vpnuni summary
  show ipv4 bgp 65535 vpnuni database
  show ipv6 bgp 65535 vpnuni database
  show ipv4 bgp 65535 vpnuni allroute <prefix> 65535:42
  show ipv6 bgp 65535 vpnuni allroute <prefix> 65535:42
  show ipv4 logger 42 flapstat 10
  show ipv6 logger 42 flapstat 10
  show ipv4 bgp 65535 vpnuni flapstat 10
  show ipv6 bgp 65535 vpnuni flapstat 10
  show ipv4 bgp 65535 vpnuni flappath <prefix> 65535:42
  show ipv6 bgp 65535 vpnuni flappath <prefix> 65535:42
have fun!
mc36
welcome
line ready
player-dn42>
player-dn42>
...

Then issue a "diff" command:

Code Block
languagebash
themeMidnight
titleconfig startupdiffer example with BGP command

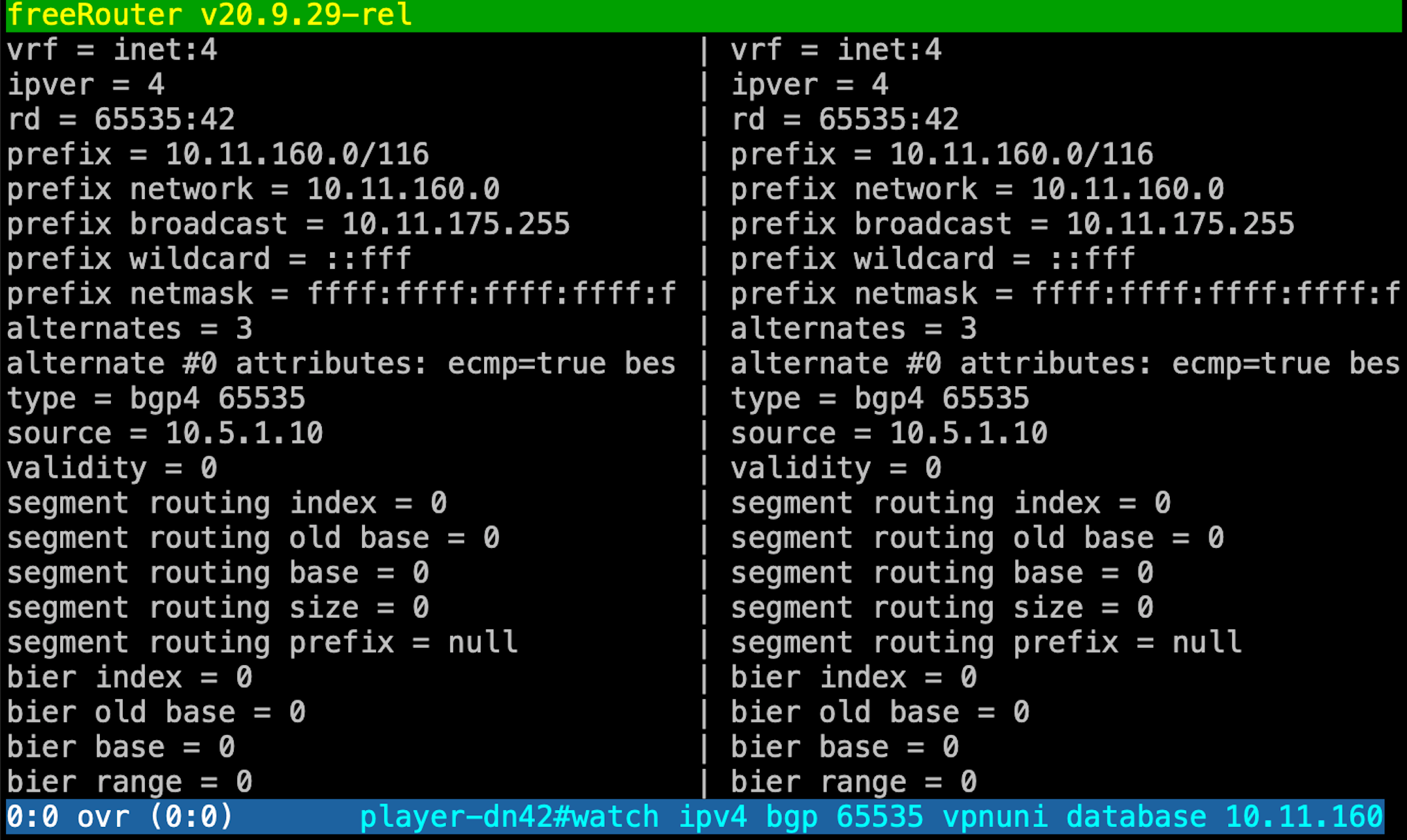

player-dn42>diff ipv4 bgp 65535 vpnuni database 10.11.160.0/20 65535:42
...

You'll be rewarded by this diff out related to the command which means:

"show me the prefix status of 10.11.160.0/20 within BGP process 65535 with rd: 65535:42"

After a quick look at VRF definition indicates that rd 65535:42 is tied to VRF dn42:

Code Block
languagebash
themeMidnight
titleCheck vrf list on router
player-dn42>sh start vrf
vrf definition dn42
 rd 65535:42
 rt-import 65535:42
 rt-export 65535:42
 source4route all
 source6route all
 mdt4
 mdt6
 exit
vrf definition rtbh
 rd 65535:666
 rt-import 65535:666
 rt-export 65535:666
 exit
vrf definition vpn
 rd 65535:1
 rt-import 65535:1
 rt-export 65535:1
 mdt4
 mdt6
 exit
...

In order to exit the sandbox session use the following escape sequence: Ctrl-c + Ctrl-x
